| Place of Origin: | Changzhou, China |
| Nombre de la marca: | trusTec |
| Certificación: | CE、UL529388 |
| Model Number: | YDK-60-8B60-KPM |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Precio: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

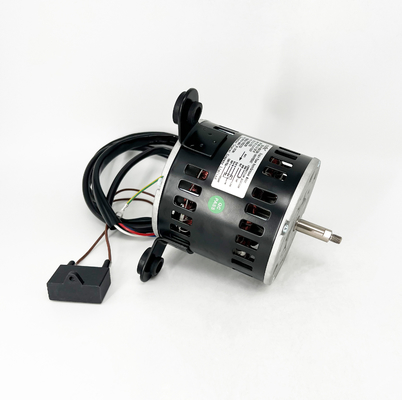

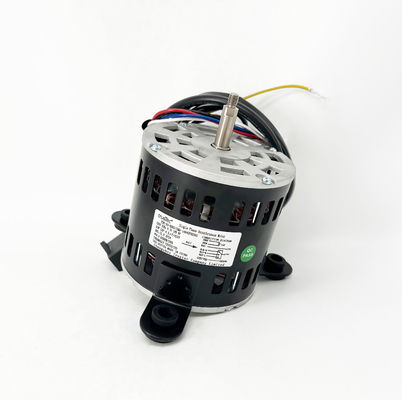

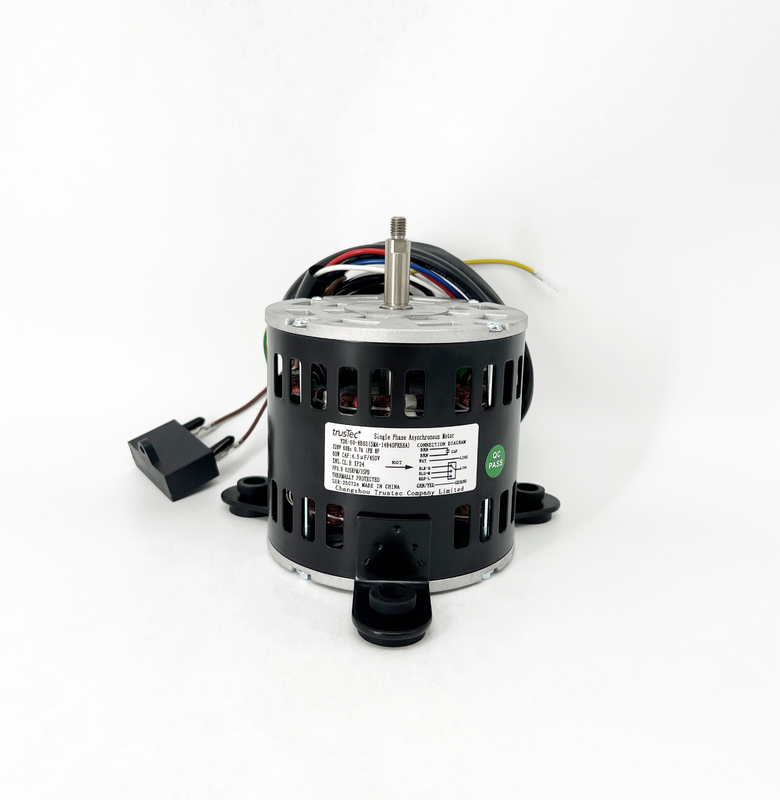

| Product: | Indoor Fan Motor | Frame: | 124mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.7A |
| Phase: | Single Phase | Output HP: | 60W |
| Shaft Flat: | One Flat | Speed: | 825RPM/3SPD |
| Mounting Orientation: | All Angle | Capacitor: | 4.5μF/450V |
| Insulation Class: | Class B | Pole: | 8P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.47"/12mm |
| PF: | 0.9 | Shaft Length: | 1.72"/43.8mm |
| Rotation: | CCW | Flat Length: | 0.71"/18mm |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 28.35"/720mm |
| Motor Shell Length: | 4.53"/115mm |
