| Place of Origin: | Changzhou, China |
| Nombre de la marca: | trusTec |
| Certificación: | CE、UL529388 |
| Model Number: | YDK-30-4-EGK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Precio: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

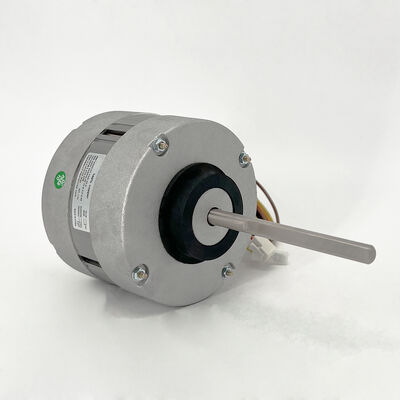

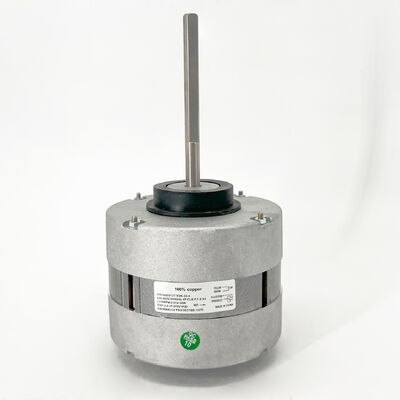

| Product: | AC Air Conditioner Fan Motor | Frame: | 95mm/3.74" |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.27A |
| Phase: | Single Phase | Output HP: | 1/25HP 30W |
| Shaft Flat: | One Flat | Speed: | 1370RPM |
| Mounting Orientation: | All Angle | Capacitor: | 2uF/370V |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Bearings: | Ball Bearing | Pole: | 4P |
| Rotation: | CW-LE | PF: | 0.90 |
| Shaft Diameter: | 8mm/0.31" | Shaft Length: | 102mm/4.02" |
| Flat Length: | 65mm/ 2.56" | Lead Length: | 700mm/27.56" |
| Motor Shell Length: | 70mm/2.76" |
