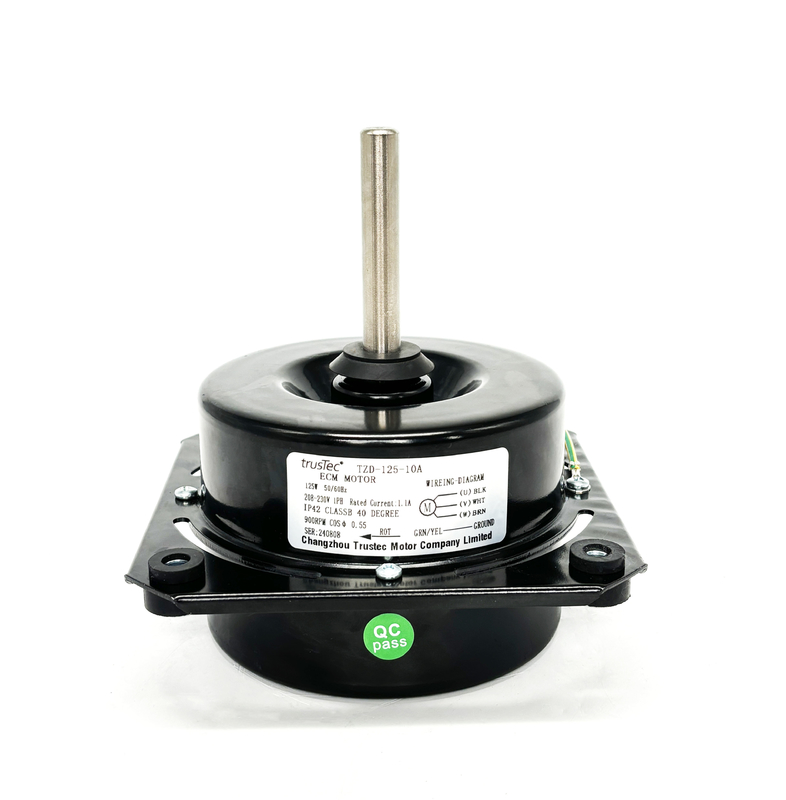

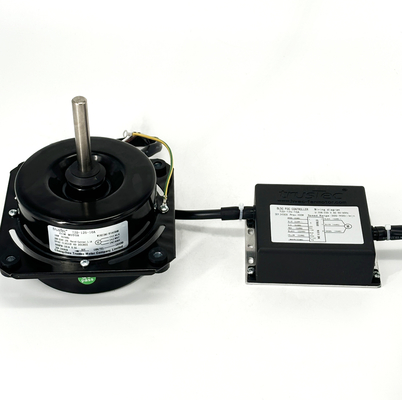

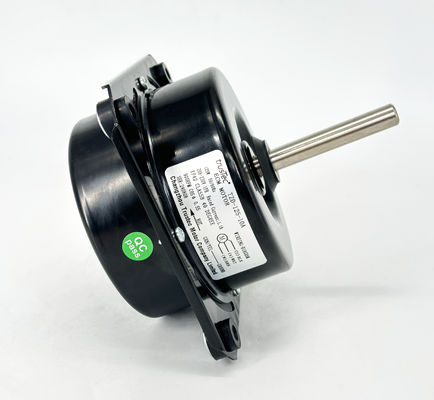

Motor ECM - 125W 900RPM 220V 50/60HZ 0-10V Control de velocidad
Lugar de origen:Changzhou, China
Nombre de la marca:trusTec
Certificación:CE
Número de modelo:El TZD-125-10A-TVM
Cantidad mínima de pedido:200 piezas
Precio:Negotiable (FOB/CNF/CIF)
Condiciones de pago:T/T, L/C
Capacidad de suministro:100, 000 pcs por mes
Etiquetas:
Detalles del producto
Resaltar:
Motor BLDC de 125 W
,Motor BLDC de 900 rpm
,Motor BLDC de 220 V
Product:
Motor conmutado electrónicamente (ECM)
Supply Voltage:
Las demás:
Enclosure Type:
TEAO ((Totalmente cerrado aire sobre)
Supply Frequency:
50/60hz
Thermal Overload:
con una carga térmica excesiva automática
Current:
1.65A
Phase:
Fase única
Output Power:
125W
Mounting:
- ¿ Qué pasa?
Speed:
900rpm
Bearings:
Rodamientos de bolas
Poles:
10 peniques
Mounting Orientation:
Todo el ángulo
Shaft Length:
3.04" / 78 mm
Insulation Class:
Clase B
Frame Size:
120 mm
Max. Ambient Temperature:
40°C y 104°F
Shaft Diameter:
1/2" / 12.7 mm
Rotation:
CCW ((SE)
Flat Length:
1.99" / 50 mm
Speed Control:
VSP de 0 a 10 V
Lead Length:
11.8" / 300 mm
Other:
FG y 10VDC
