| Place of Origin: | Changzhou, China |
| Nombre de la marca: | trusTec |
| Certificación: | CE、UL529388 |
| Model Number: | YDK120-72-6T3-DNW |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Precio: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

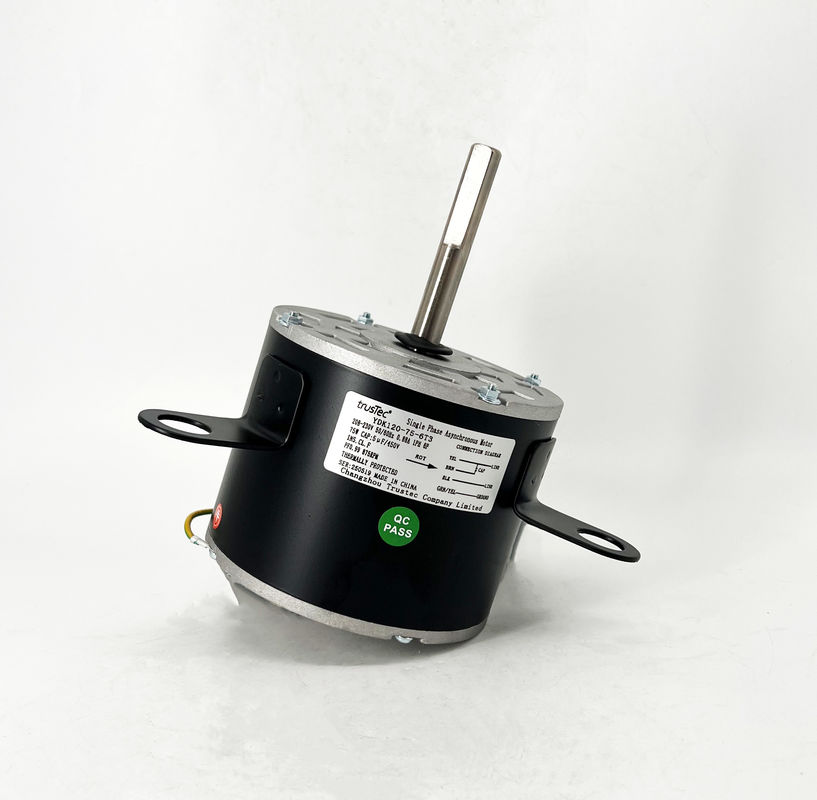

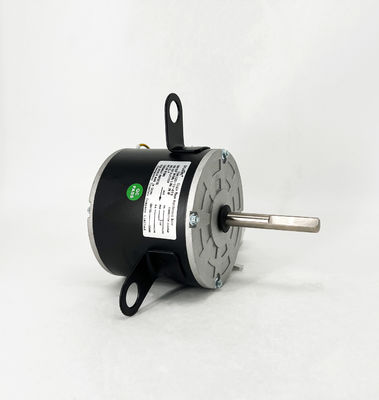

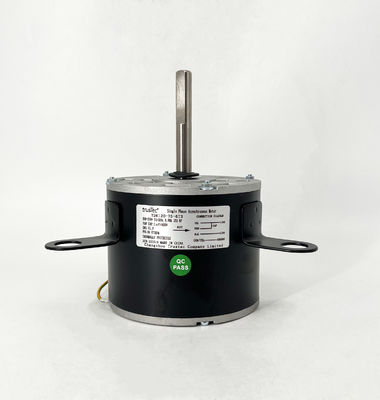

| Product: | Condenser Fan Motor | Frame: | 120mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.88A |
| Fase: | Fase única | Output HP: | 75W |
| El eje es plano: | Un piso. | Velocidad: | 875 rpm |
| Orientación de montaje: | Todo el ángulo | Capacitor: | 5uF/450V |
| Insulation Class: | Class F | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| Rotación: | CCW | El PF: | 0.99 |
| Max. Ambient Temperature: | 70℃/158℉ | Lead Length: | 43.31"/1100mm |
| Resaltar: | Motor de ventilador de condensador de 50/60 Hz,Motor de ventilador de condensación de 875 rpm,Motor de ventilador de condensador de 208-230 V |
||
