TRUSTEC MOTOR TU FÁBRICA DE CONFIANZA
Soporte y Ventas:
 |
| Lugar de origen: | Jiangsu, China |
| Nombre de la marca: | trusTec |
| Número de modelo: | TZS-600-10A2-NLR |
| Cantidad de orden mínima: | 200 |
|---|---|
| Precio: | $228.70-230.10 |
| Corriente continua: | 5.25A | Eficiencia: | El 3 |
|---|---|---|---|
| Velocidad: | 925 rpm | Tamaño de marco: | 143 mm |
| Instalación del motor: | Montura del pie | Potencia nominal: | 220-240W |
| Voltaje nominal: | 220-240V | Tipo de motor: | Motor del ventilador del condensador |
| Tipo de recinto: | TEAO | Fase: | Fase única |
| Diámetro del eje: | 12.7 mm | Longitud del eje: | 98.5 mm |
| Max Ambient Temperature: | 40 ℃ | Modo de control: | PWM |
| Polos: | 10 peniques | ||
| Resaltar: | 600W EC Condenser Fan Motor,220-240V Air Conditioner Fan Motor,50/60HZ HVAC Fan Motor |
||

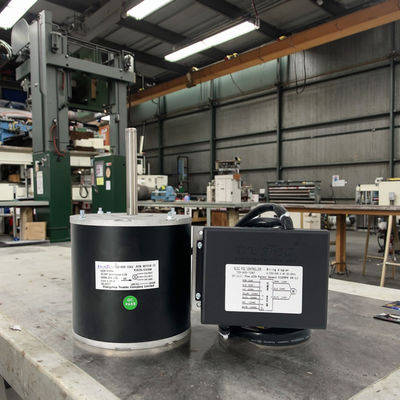

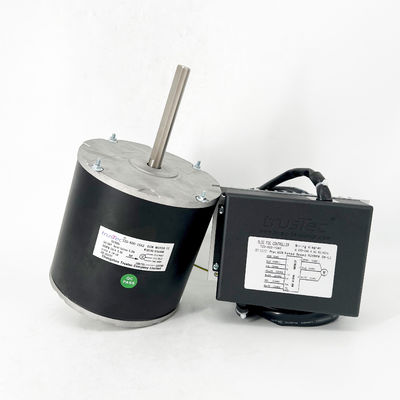

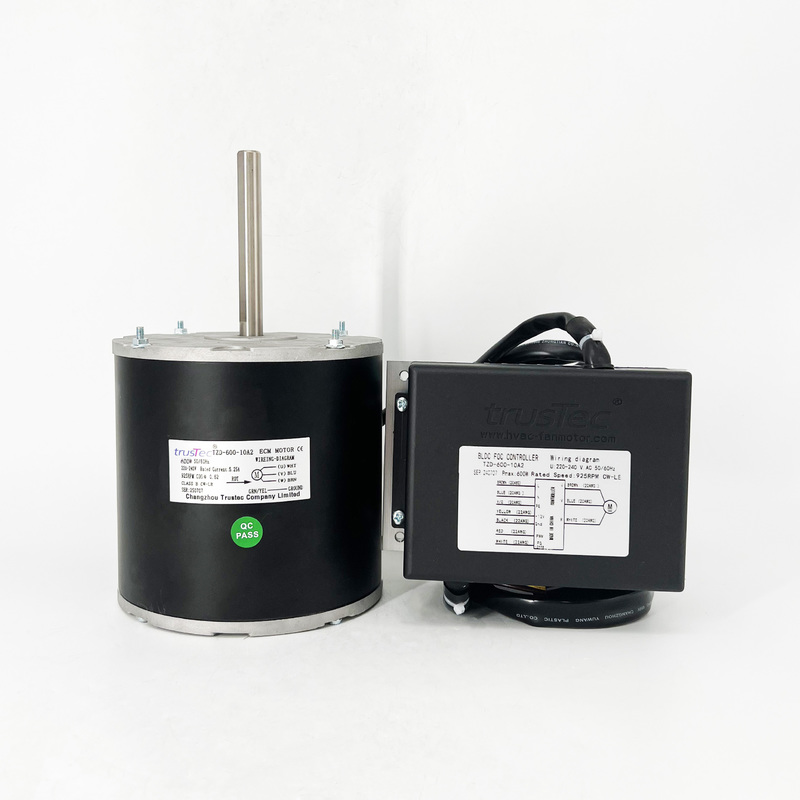

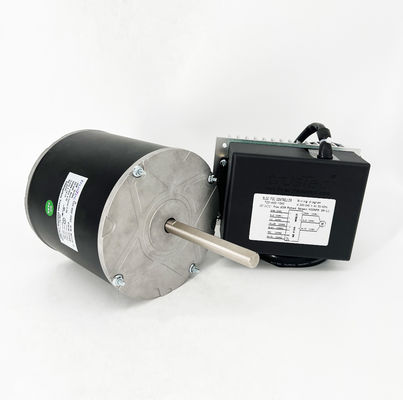

This high-efficiency EC condenser fan motor delivers reliable performance for air conditioning units with its advanced electronically commutated technology and durable construction.
| Feature | Specification |
|---|---|
| Motor Type | Condenser Fan Motor |
| Enclosure Type | TEAO (Totally Enclosed Air Over) |
| Thermal Protection | Automatic Thermal Overload |
| Phase | Single Phase |
| Mounting | Stud Mounting All Angle |
| Bearings | Ball Bearing |
| Supply Voltage | 220-240V |
| Supply Frequency | 50/60HZ |
| Current | 5.25A |
| Output Power | 220-240W |
| Rated Speed | 925RPM |
| Frame Size | 5.6" / 143mm |
| Shaft Diameter | 0.5" / 12.7mm |
| Shaft Length | 3.87" / 98.5mm |
| Flat Length | 3.54" / 90mm |
| Motor Shell Length | 5.47" / 139mm |
| Lead Length | 19.69" / 500mm |
| Max. Ambient Temperature | 40℃/104℉ |
| Control Mode | PWM |
| Poles | 10P |
| Rotation | CW-LE |
| Insulation Class | Class B |
