TRUSTEC MOTOR TU FÁBRICA DE CONFIANZA
Soporte y Ventas:

|
| Place of Origin: | Changzhou, China |
| Nombre de la marca: | trusTec |
| Certificación: | CE、UL529388 |
| Model Number: | YDK-550-6B57-UNB |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Precio: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

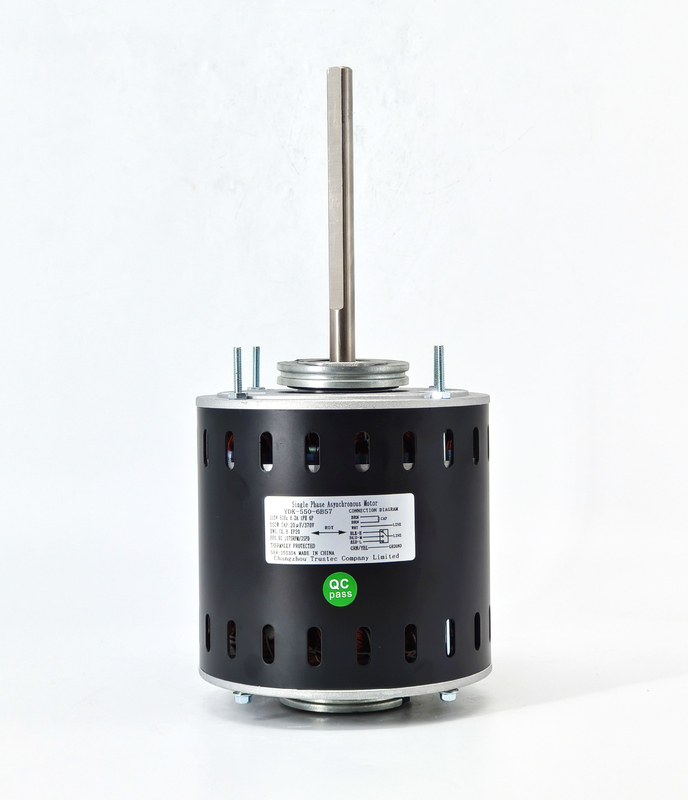

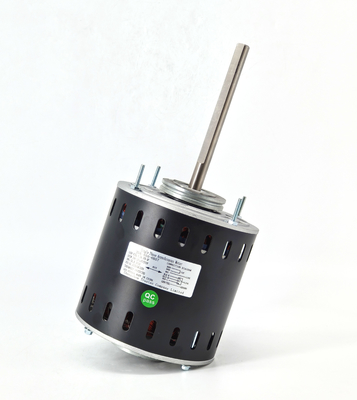

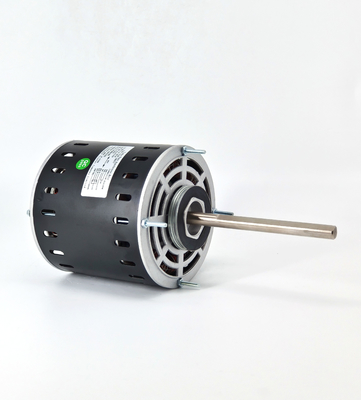

| Product: | Direct Drive Blower Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 115V |
| Enclosure Type: | OAO (Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped with an Automatic Thermal Overload | Current: | 8.2A |
| Phase: | Single Phase | Output HP: | 3/4HP |
| Shaft Flats: | One flat | Rated Speed: | 1075RPM/3SPD |
| Mounting Orientation: | All angle | Capacitor: | 20uF/370V |
| Mounting: | Stud Mounting All Angel | Shaft Diameter: | 1/2" / 12.7mm |
| Insulation Class: | Class B | Shaft Length: | 5.75" / 146.05mm |
| Bearings: | Ball Bearing | Flat Length: | 4.6" / 116.84mm |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 22.8" / 580mm |
| Rotation: | Reversible | Screw Length: | 1.62" / 41.1mm |
| Pole: | 6P | Motor Shell Length: | 5.48" / 139.2mm |
| PF: | 0.9 | ||
| Resaltar: | Motor de soplador de corriente alterna de 3/4 CV,Motor de soplador de corriente alterna de 1075 rpm,Motor de soplador de corriente alterna de 115 V a 60 Hz |
||
